Model Whirlpool F9817^0 – Common Parts & Diagrams
02 - BACKGUARD , LIT/OPTIONAL
04 - BODY

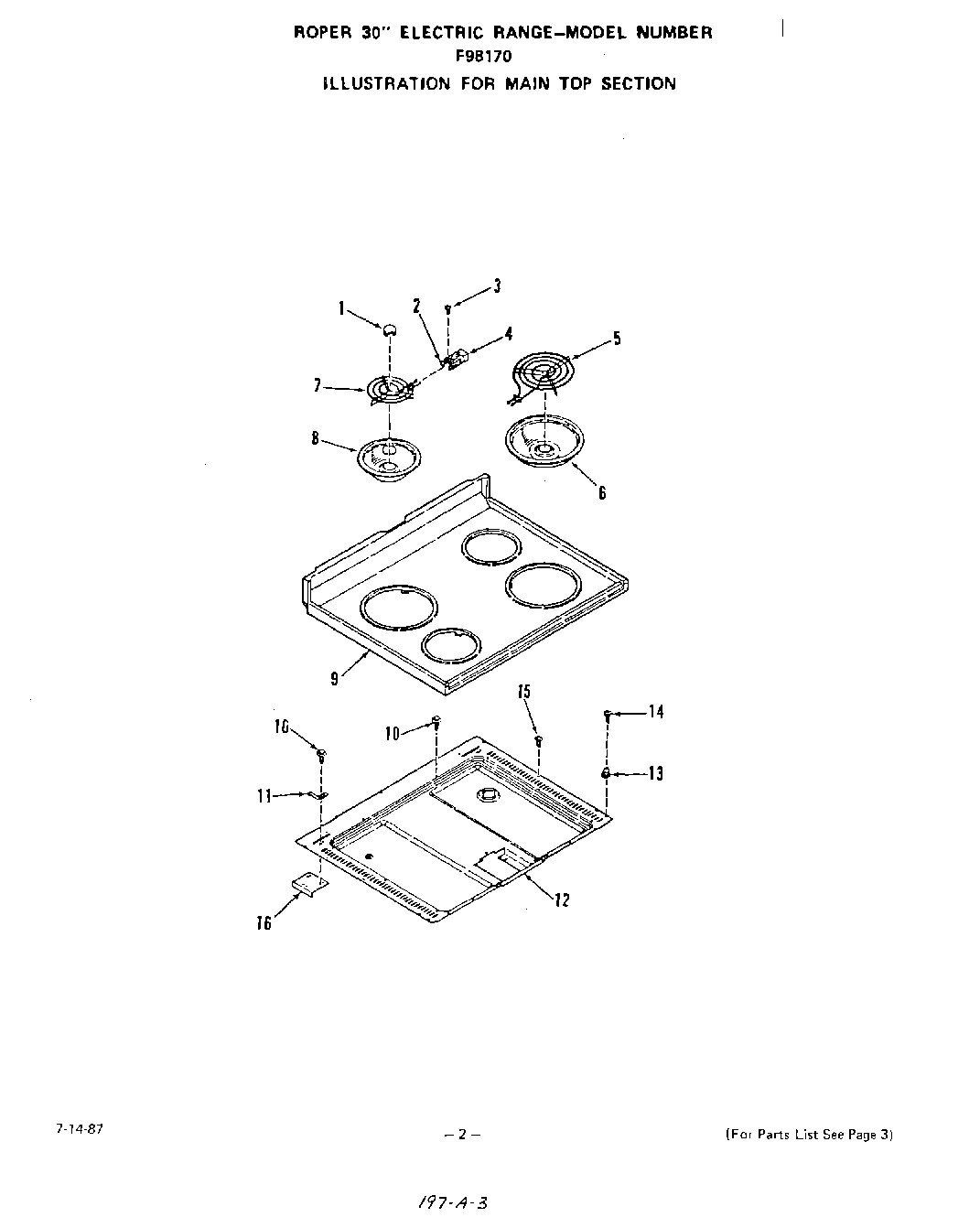

03 - MAIN TOP

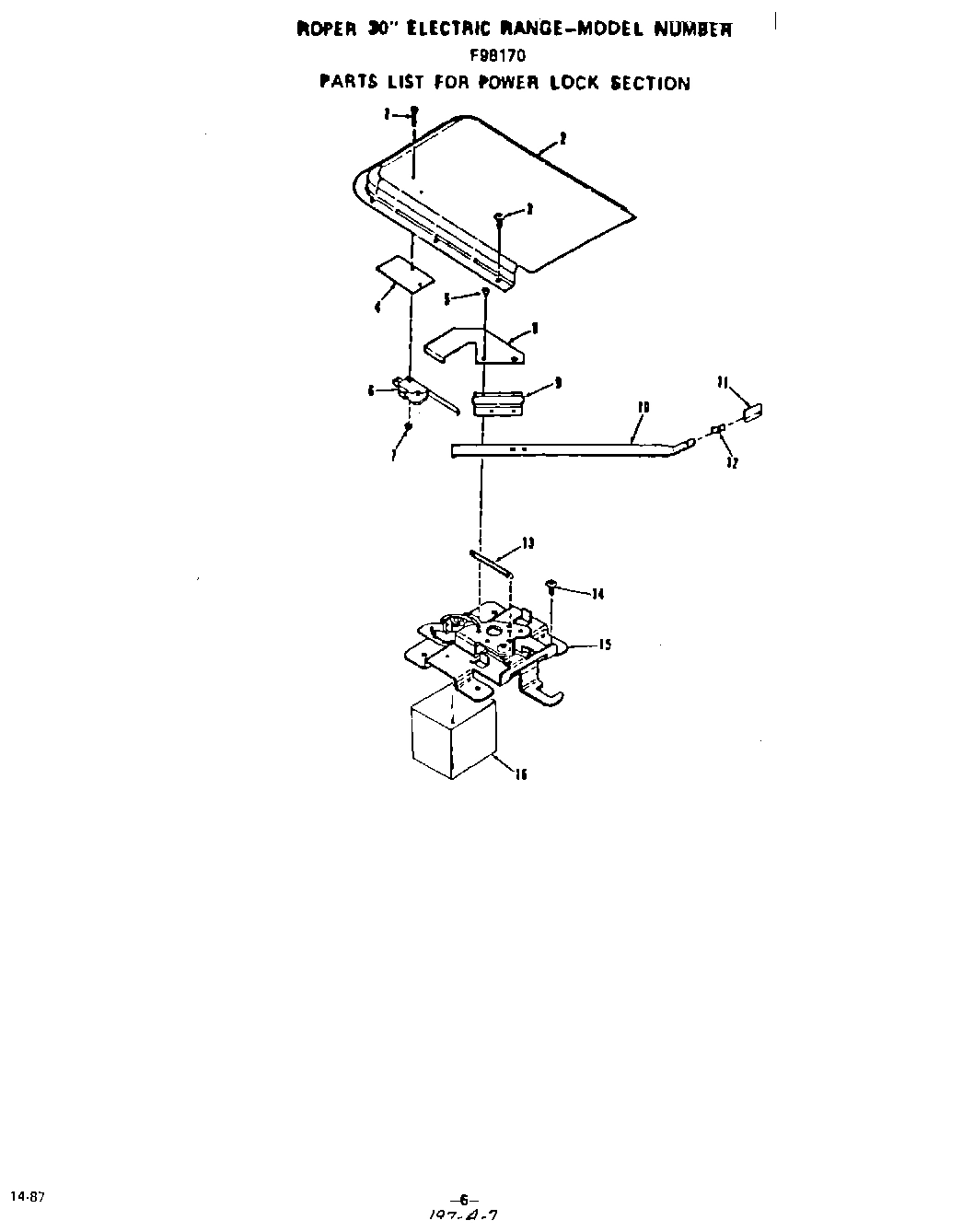

05 - POWER LOCK

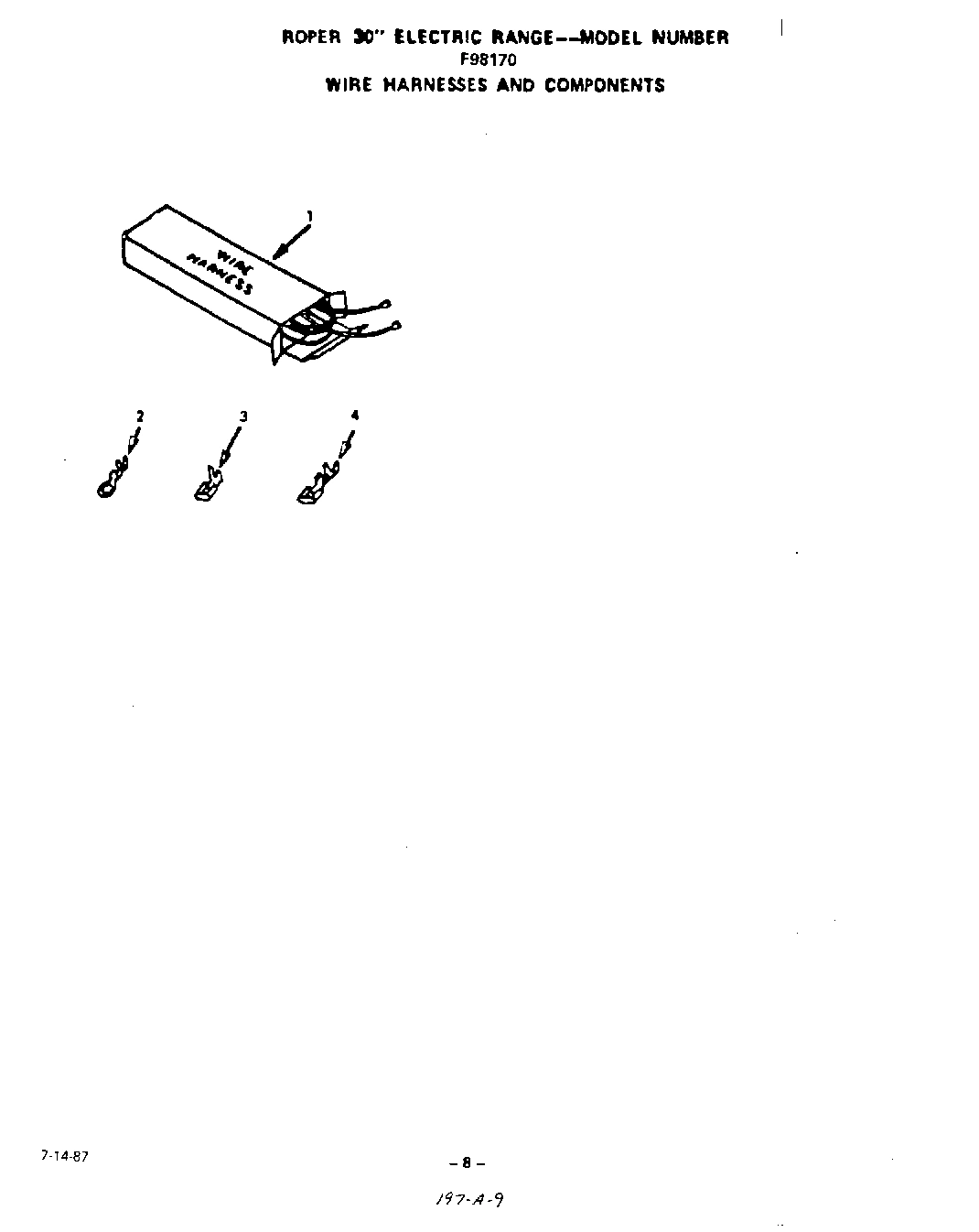

07 - WIRE HARNESSES AND COMPONENTS

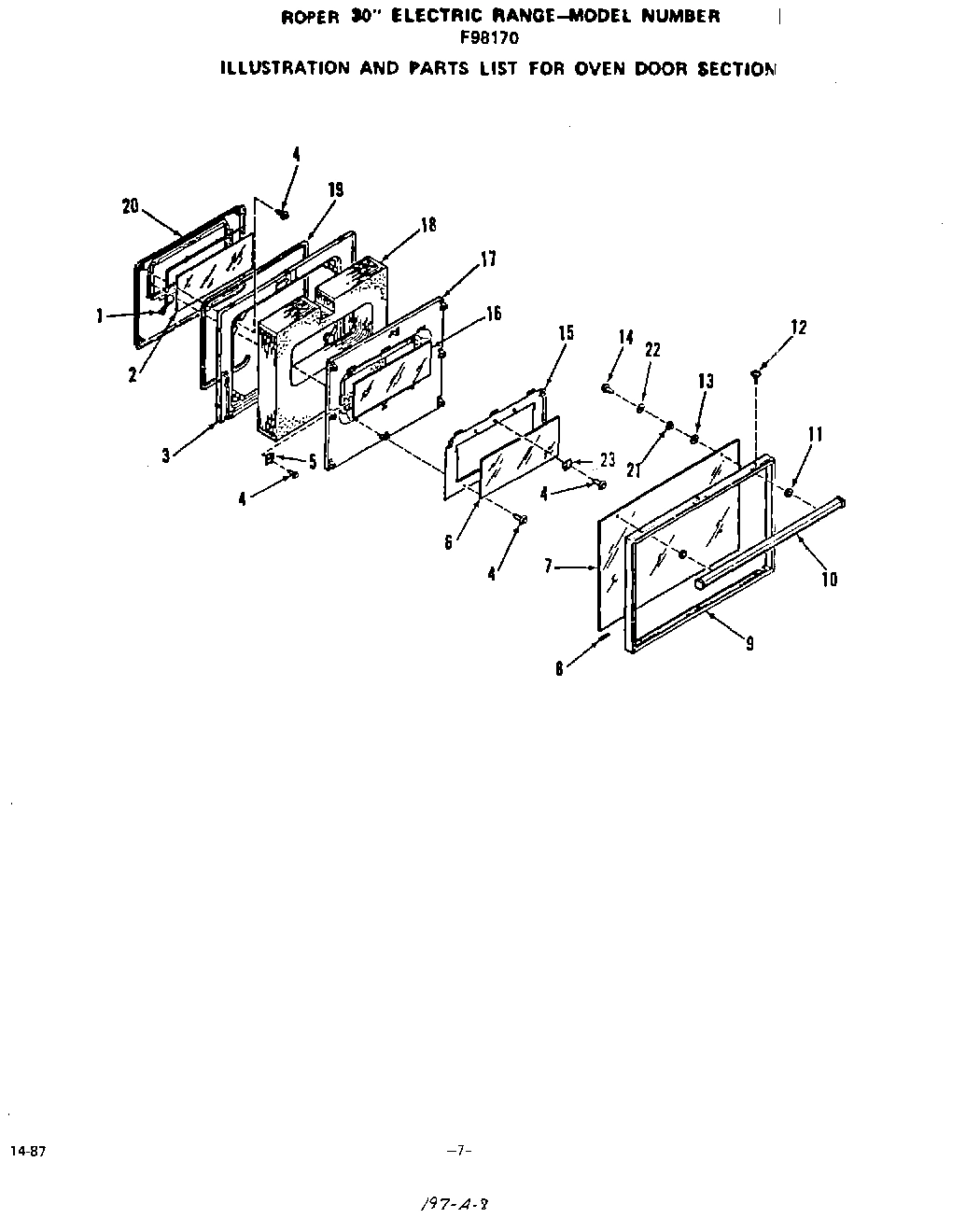

06 - OVEN DOOR

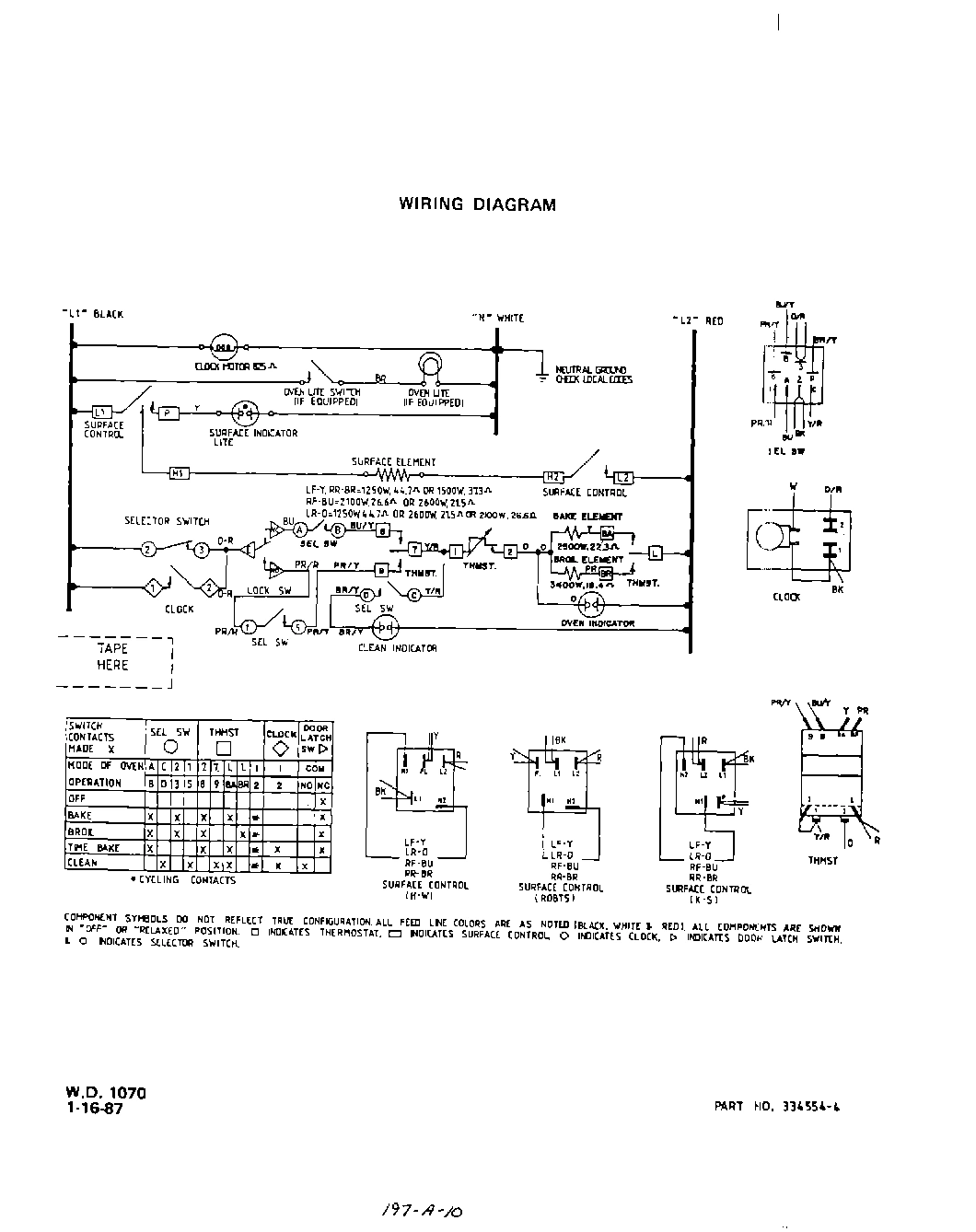

08 - WIRING DIAGRAM
Common parts from model Whirlpool F9817^0
xJunction Block WPL 290105 Contact Us For Availability
xWasher WPL 299425 Contact Us For Availability
xInsulation Retainer-Lower WPL 312517 Contact Us For Availability
xScrew 10-32x1 WPL 313190 Contact Us For Availability
xScrew 10-32x7/16`` WPL 313191 Contact Us For Availability
xInsulation-Oven Back WPL 326049 Contact Us For Availability
xLeg Levelers (4 Req) WPL 326052 Contact Us For Availability
xWire Shield-Upper WPL 327235 Contact Us For Availability
xInsulator-Service Cord WPL 327242 Contact Us For Availability
xGround Strap WPL 327255 Contact Us For Availability
xWire Shield-Lower WPL 327258 Contact Us For Availability
WPL 327259 WPL 327259 Contact Us For Availability
WPL 328984 WPL 328984 Contact Us For Availability
WPL 333749 WPL 333749 Contact Us For Availability
WPL 333956 WPL 333956 Contact Us For Availability
WPL 334811 WPL 334811 Contact Us For Availability
1
Medallion (4 Req) WPL 318586 Contact Us For Availability
1
Screw 4-40 x 11/16`` WPL 335942 Contact Us For Availability
1
Wire Harness (Main Top) WPL 334535 Contact Us For Availability
1
Wire Harness (Main) WPL 334555 Contact Us For Availability
1
Wire Harness (Lock Switch) WPL 334556 Contact Us For Availability
1
Seal-Inner Glass WPL 302935 Contact Us For Availability
2
Wire Raceway WPL 334363 Contact Us For Availability
2
Terminal Block Clip (4 Req) WPL 318872 Contact Us For Availability
2
Cover-Lock WPL 335934 Contact Us For Availability
2
Eyelet Terminal WPL 238387 Contact Us For Availability
2
Inner Glass-Oven Door WPL 336442 Contact Us For Availability
3
Raceway Cover WPL 334364 Contact Us For Availability
3
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
3
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
3
Flag Terminal WPL 238389 Contact Us For Availability
3
Lining-Oven Door WPL 331624 Contact Us For Availability
4
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
4
Backguard Body WPL 334199 Contact Us For Availability
4
Terminal Block w/Wires (4 Req) WPL 318960 Contact Us For Availability
4
Insulator-Switch WPL 329171 Contact Us For Availability
4
Faston Terminal (3/16``) WPL 238392 Contact Us For Availability
4
Faston Terminal (1/4``) WPL 238393 Contact Us For Availability
5
Backguard Support (Right) WPL 334337 Contact Us For Availability
5
Backguard Support (Left) WPL 334338 Contact Us For Availability
5
8`` Surface Element WPL 325503 Contact Us For Availability
5
Screw 8-32x1/4`` WPL 97411 Contact Us For Availability
5
Retainer-Door Glass WPL 326009 Contact Us For Availability
6
End Cap (Right) WPL 335074 Contact Us For Availability
6
End Cap (Left) WPL 335075 Contact Us For Availability
6
8`` Burner Bowl WPL 292975 Contact Us For Availability
6
Micro Switch WPL 335177 Contact Us For Availability
6
Intermediate Glass-Oven Door WPL 338108 Contact Us For Availability
7
Screw 6-20x3/8`` WPL 336152 Contact Us For Availability
7
6`` Surface Element WPL 325507 Contact Us For Availability
7
Nut-Hex 4-40 WPL 306638 Contact Us For Availability
7
Outer Glass-Oven Door WPL 332067 Contact Us For Availability
8
Thermostat WPL 334557 Contact Us For Availability
8
6`` Burner Bowl WPL 292974 Contact Us For Availability
8
Switch Lever WPL 335929 Contact Us For Availability
8
Cushion (3 Req) WPL 112370 Contact Us For Availability
9
Selector Switch WPL 334622 Contact Us For Availability
9
Main Top (White) WPL 332047 Contact Us For Availability
9
Main Top (Almond) WPL 332251 Contact Us For Availability
9
Retainer-Latch Handle WPL 333787 Contact Us For Availability
9
Frame-Oven Door WPL 332065 Contact Us For Availability
10
Infinite Switch (Lt.Fr., Lt. Rr., Rt. Rr.) WPL 334887 Contact Us For Availability
10
Handle WPL 334848 Contact Us For Availability
10
Handle-Latch WPL 333792 Contact Us For Availability
11
Infinite Switch (Rt. Front) WPL 334888 Contact Us For Availability
11
Hinge-Main Top (Left) WPL 333859 Contact Us For Availability
11
Hinge-Main Top (Right) WPL 334089 Contact Us For Availability
11
Knob-Lock WPL 335738 Contact Us For Availability
11
Spacer, Door Handle WPL 107158 Contact Us For Availability
12
Indicator Light WPL 331716 Contact Us For Availability
12
Screw WPL 331704 Contact Us For Availability
12
Burner Box Bottom WPL 333171 Contact Us For Availability
12
Clip-Knob WPL 328474 Contact Us For Availability
13
Indicator Light WPL 331717 Contact Us For Availability
13
Strike WPL 333892 Contact Us For Availability
13
Spring-Lock Handle WPL 313075 Contact Us For Availability
13
Washer WPL 333014 Contact Us For Availability
14
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
14
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
14
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
15
Thermostat WPL 334990 Contact Us For Availability
15
Screw 10-16x1/2`` WPL 335967 Contact Us For Availability
15
Latch Asm. WPL 333781 Contact Us For Availability
15
Mounting Plate-Glass WPL 328615 Contact Us For Availability
16
Selector Knob WPL 334989 Contact Us For Availability
16
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
16
Body Side (Lt. or Rt.) (Slide Block-Rear (Lt. WPL 281913 Contact Us For Availability
16
Body Side (Lt. or Rt.) (Screw 8ABx5/8``) WPL 314124 Contact Us For Availability
16
Hinge-Oven Door (Right) WPL 332345 Contact Us For Availability
16
Hinge-Oven Door (Left) WPL 332346 Contact Us For Availability
16
Body Side (Lt. or Rt.) (White) WPL 333303 Contact Us For Availability
16
Body Side (Lt. or Rt.) (Almond) WPL 333307 Contact Us For Availability
16
Hinge-Oven Door (Spring-Oven Door (Lt. or Rt. WPL 334572 Contact Us For Availability
16
Reinforcement Plate WPL 335823 Contact Us For Availability
16
Insulation Retainer WPL 338865 Contact Us For Availability
16
Center Glass-Oven Door WPL 326088 Contact Us For Availability
17
Switch WPL 334649 Contact Us For Availability
17
Retainer-Oven Door Insulation WPL 328623 Contact Us For Availability
18
Infinite Knob WPL 334988 Contact Us For Availability
18
Insulation-Oven Door WPL 335782 Contact Us For Availability
19
Lens-Indicator Light WPL 331705 Contact Us For Availability
19
Gasket-Oven Door WPL 292244 Contact Us For Availability
20
Control Panel WPL 338908 Contact Us For Availability
20
Plug-Oven Door Lining WPL 335165 Contact Us For Availability
21
Clock Bracket WPL 334200 Contact Us For Availability
21
Spacer-Glass WPL 333015 Contact Us For Availability
22
Clock Knob WPL 334045 Contact Us For Availability
22
Washer WPL 99279 Contact Us For Availability
23
Clock Glass WPL 323174 Contact Us For Availability
23
Retainer-Door Glass WPL 312888 Contact Us For Availability
24
Clock (60 Cycle) WPL 334169 Contact Us For Availability
24
Clock (50 Cycle) WPL 335249 Contact Us For Availability
25
Body Side Cleat WPL 335977 Contact Us For Availability
28
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
29
Slide Block-Front (Lt. or Rt.) WPL 281914 Contact Us For Availability
30
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
31
Front Panel-Storage (White) WPL 332121 Contact Us For Availability
31
Front Panel-Storage (Almond) WPL 332125 Contact Us For Availability
33
Screw 10-32x1/2`` WPL 295850 Contact Us For Availability
34
Bake Element (240 Volt) WPL 326365 Contact Us For Availability
34
Bake Element (208 Volt) WPL 326366 Contact Us For Availability
35
Storage Drawer WPL 296150 Contact Us For Availability
36
Oven Body WPL 337043 Contact Us For Availability
37
Vent Tube WPL 333802 Contact Us For Availability
38
Front Frame WPL 314062 Contact Us For Availability
39
Bulb Holder WPL 87883 Contact Us For Availability
40
Oven Lamp WPL 339665 Contact Us For Availability
41
Washer WPL 21067 Contact Us For Availability
42
Clip-Thermostat Bulb (2 Req) WPL 321539 Contact Us For Availability
43
Broiler Pan WPL 331592 Contact Us For Availability
44
Insulation - Top & Sides (Front) WPL 316951 Contact Us For Availability
45
Oven Rack WPL 326069 Contact Us For Availability
46
Broiler Pan Grid WPL 326297 Contact Us For Availability
47
Support-Broiler Element WPL 339593 Contact Us For Availability
48
Broil Element (240 Volt) WPL 334368 Contact Us For Availability
48
Broil Element (208 Volt) WPL 334369 Contact Us For Availability
49
Gasket-Lens WPL 229371 Contact Us For Availability
50
Lens-Oven Bulb WPL 114989 Contact Us For Availability
51
Retainer WPL 229372 Contact Us For Availability
52
Plug Button WPL 339623 Contact Us For Availability
× ![]()
